STEP 9 - ADDING THE MIDDLE VERTICAL PANEL
For this Step you will need:
- MIDDLE VERTICAL SIDE PANEL
- CAMS
- CAM PINS
- CAM PIN LOCKING SCREWS
- WOODEN DOWELS
- ALLEN KEY
- SCREW DRIVER
- PREVIOUSLY ASSEMBLED CABINETRY

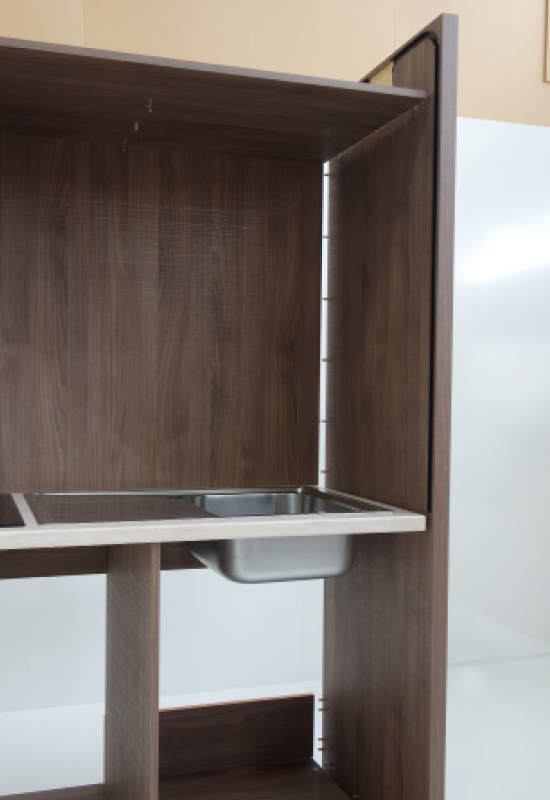

Select the MIDDLE VERTICAL PANEL and insert the hardware i.e. PLASTIC FEET, CAMS, CAM PINS, CAM PIN LOCKING SCREWS and WOODEN DOWELS as described in Step 6) into the left hand side of the MIDDLE VERTICAL PANEL only.
DO NOT insert the hardware into the right hand side of THE MIDDLE VERTICAL PANEL until the panel has been assembled and locked into its correct position.
Now insert the CAMS, CAM PINS, CAM PIN, LOCKING SCREWS and WOODEN DOWELS into the right hand side of this MIDDLE VERTICAL PANEL.
