THE CAM LOCKING SYSTEM
It is important to know how the CAM, CAM PIN and the CAM PIN LOCKING SCREWS operate.
Please note that when correctly installed and locked in place the small indentations on either side of the CAM, face the direction on the CAM PIN. It is very important that the CAM and CAM PIN are correctly aligned during assembly.
THE CAM PIN

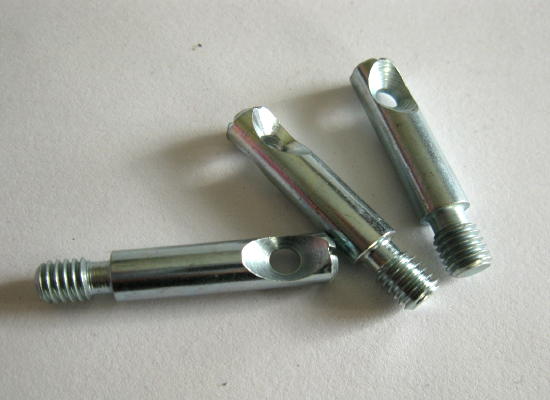

CAM PIN

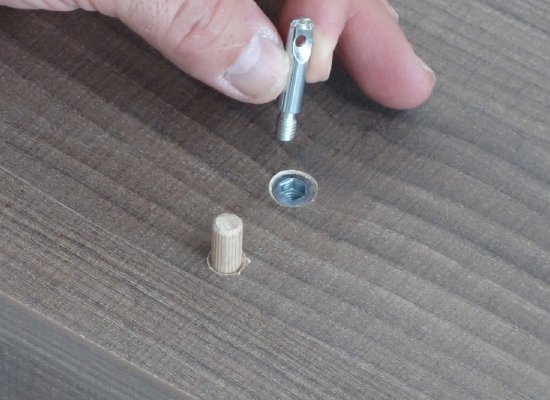

Screw the CAM PIN into the factory fitted PIN LOCATORS.

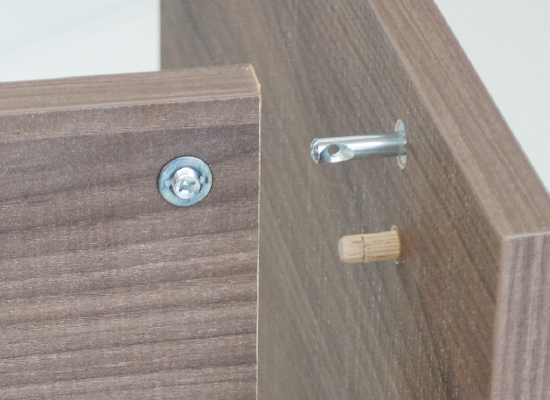

Correct horizontal alignment of the outside CAM PIN.
Horizontal = Back Panel, Top and Bottom Panels

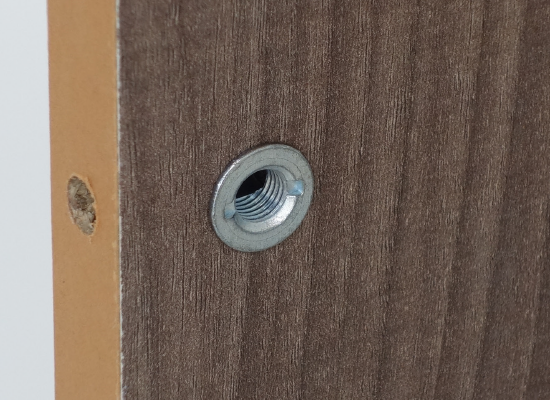

Correct vertical alignment of the inside CAM PIN.
Vertical = Top of MiniKitchen, Bench Top and Bottom Panels
THE CAM
CAM
CAM in place with small indentations facing the CAM PIN.
THE CAM PIN LOCKING SCREW
CAM PIN LOCKING SCREW
Insert the CAM PIN LOCKING SCREW into the CAM.
