STEP TWO - THE BASE
For this Step you will need:
- BASE PANEL
- PLASTIC CABINET FEET
- CAMS
- CAM LOCKING PIN SCREWS
- CAM PINS
- WOODEN DOWELS
- HAMMER
- ALLEN KEYS
- SCREWDRIVER

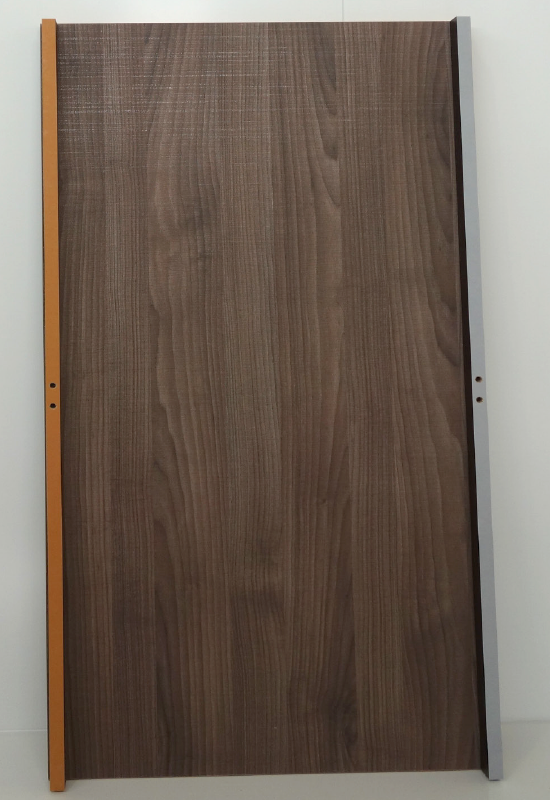

Select the BASE PANEL.

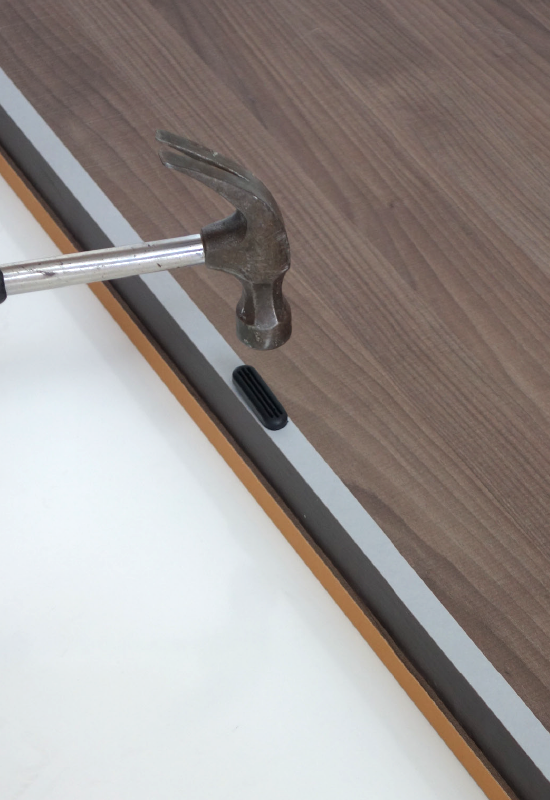

Turn the BASE upside down and insert the PLASTIC CABINET FEET to the bottom of the BASE.

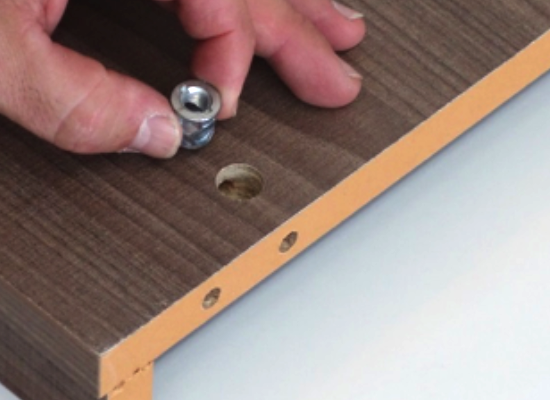

Turn the BASE over and insert all the CAMS into the BASE panel taking care to see that the small indentations face the direction in which the CAM PINS will be inserted.

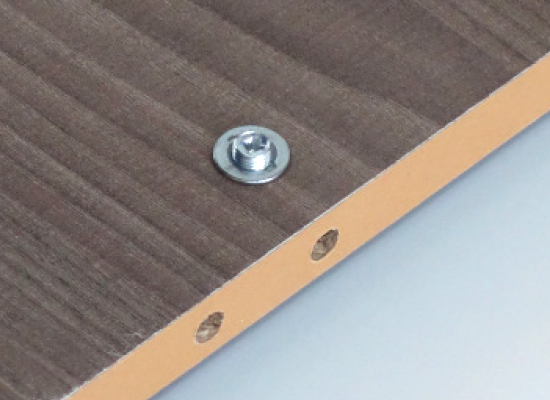

Loosely insert the CAM PIN LOCKING SCREWS. Do not screw all the way in otherwise it will not be possible to insert the CAM PINS when the adjoining panel is attached to the BASE.

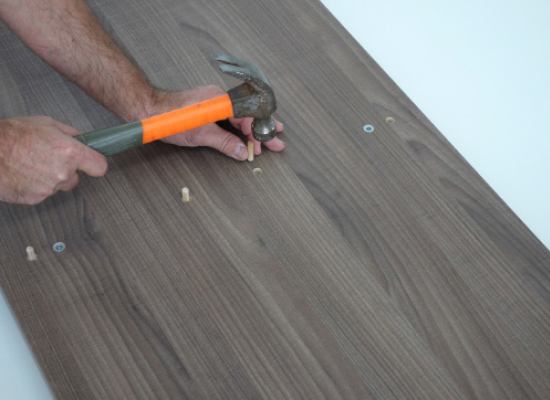

Insert the WOODEN DOWELS into the BASE.

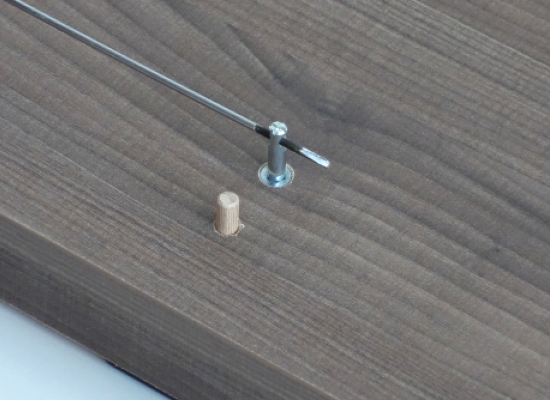

Screw the CAM PINS into the factory installed PIN LOCATORS and align as previously shown.

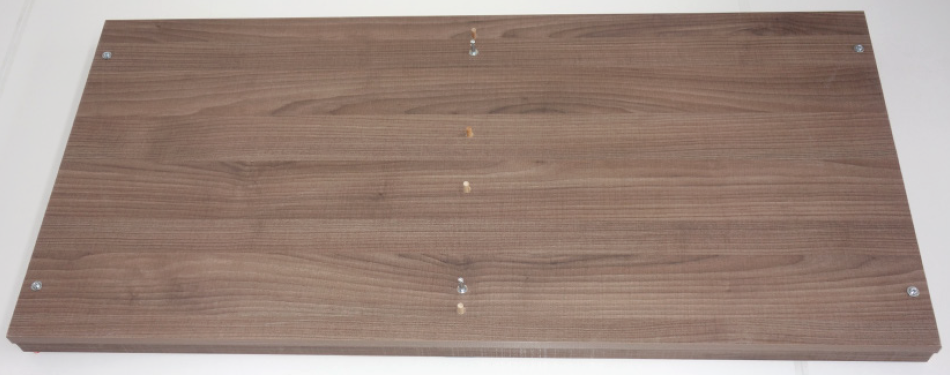

The BASE is now complete.
